FREE SHIPPING IN EU

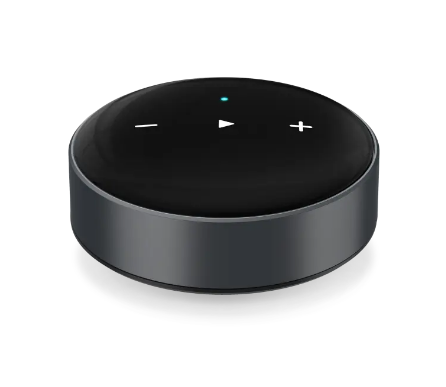

WIIM MINI AUDIO STREAMER
AUD1124
Availability: available
The WiiM Mini is a small and extremely versatile network player, ideal for converting a conventional audio system into a connected system. BIT-PERFECT WIFI AIRPLAY 2
Additional specifications for WIIM MINI AUDIO STREAMER
Dimensions and Weight
Dimensions:69 × 69 × 24 mm
Weight:40g
Audio Codec
MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
Wi - Fi
Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network
Bluetooth
Bluetooth 5.0, SBC and AAC codec, BT receiver and transmitter (with SW update)
Line in
1Vrms
Line out
Line in to Line out：
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
BT in to Line out：
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
SPDIF
Line in to SPDIF out：
Power Output=-3dBFS
THD+N Ratio=0.005%
SNR=102dB
Crosstalk=-103dB
Dynamic Range=97dB
THD+N Ratio=0.005%
SNR=102dB
Crosstalk=-103dB
Dynamic Range=97dB
BT in to SPDIF out：
Power Output=0dBFS
THD+N Ratio=0.005%
SNR=297dB
Crosstalk=-364dB
Dynamic Range=213dB
THD+N Ratio=0.005%
SNR=297dB
Crosstalk=-364dB
Dynamic Range=213dB
Power Supply
5V,1A
LED
Three color status LED - Red, Green and White.
Button
Capacitive touch - Play/Pause, Volume+, Volume-
